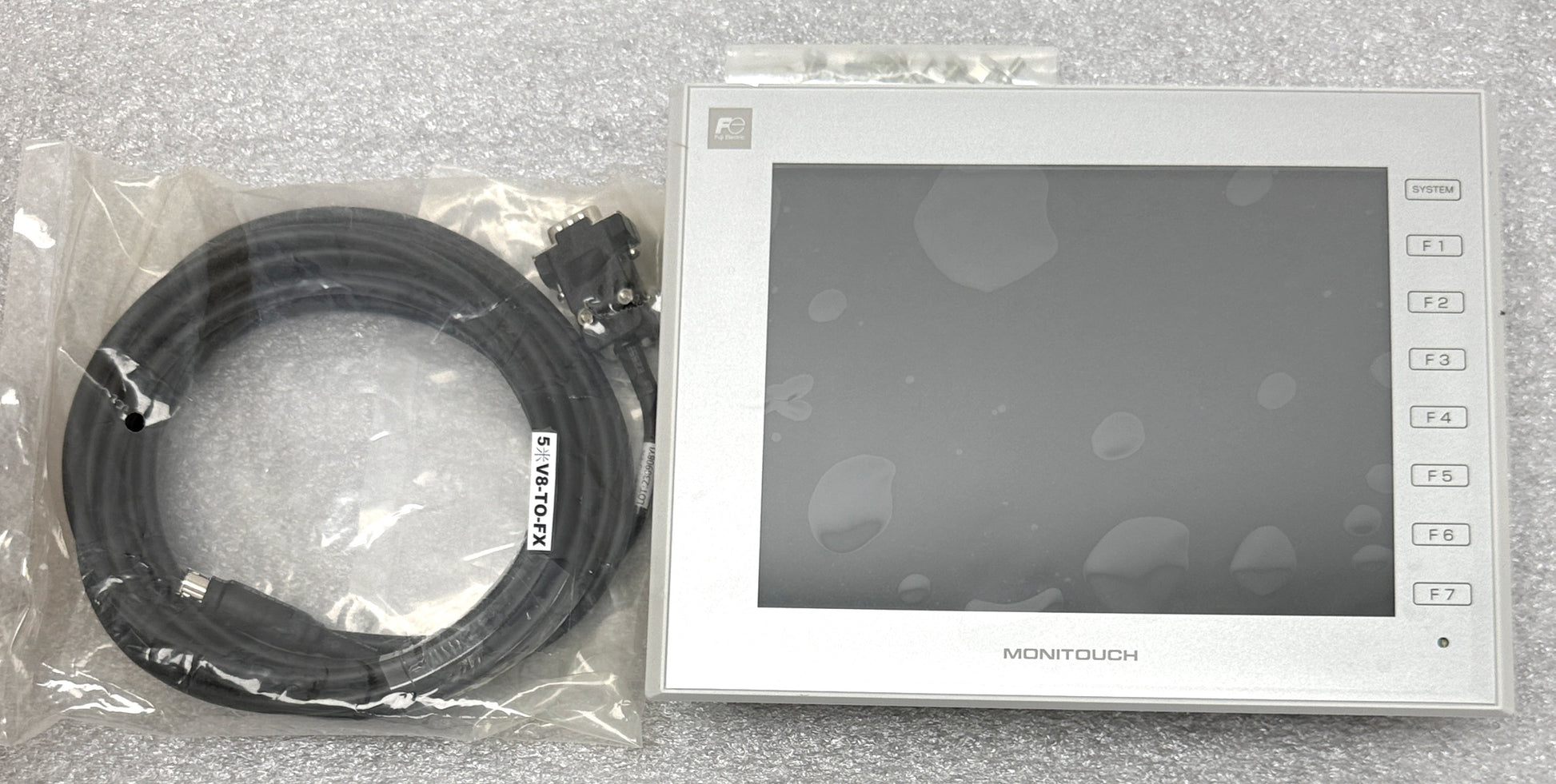

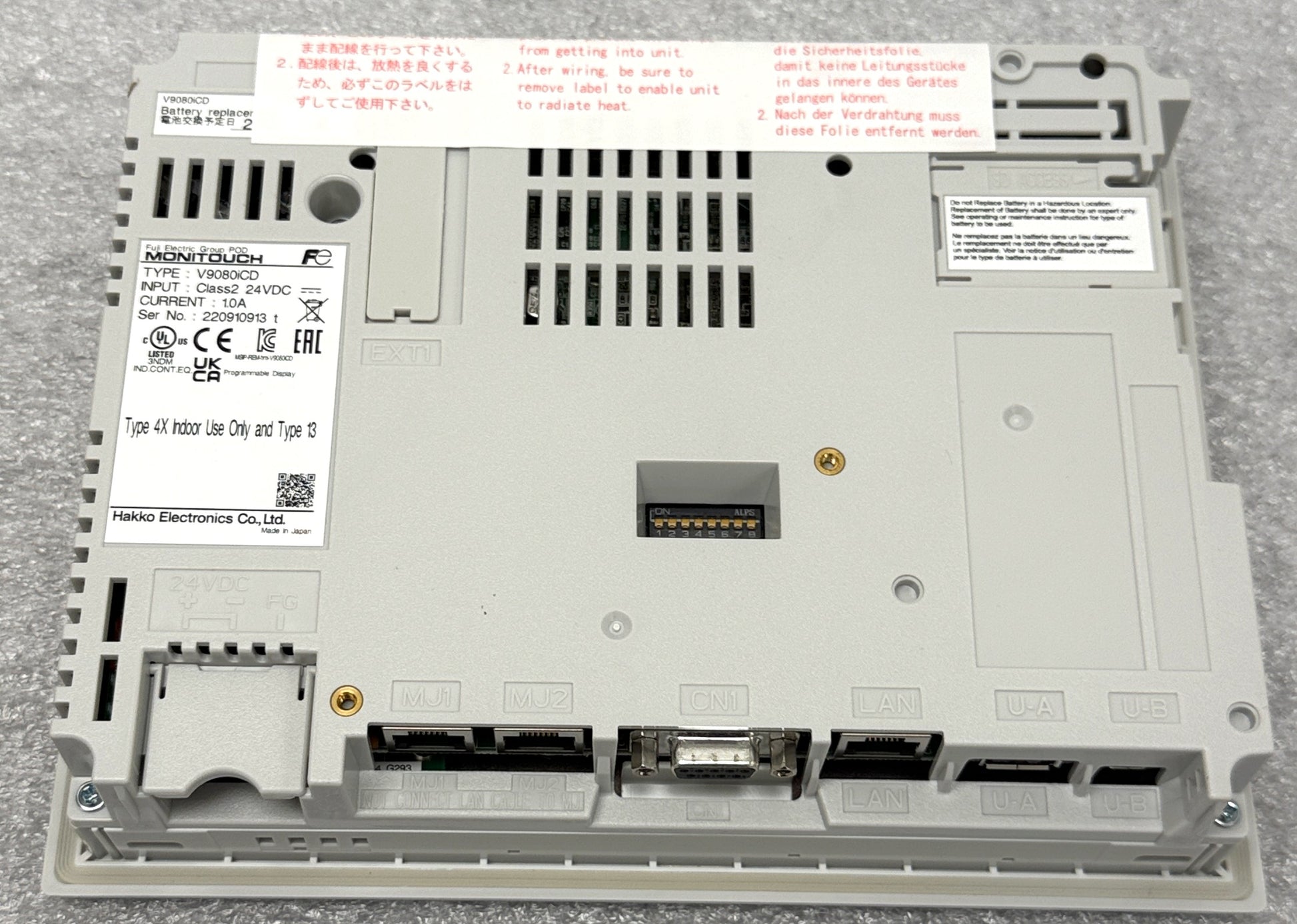

Fuji Electric Touch Screen: HMI V9080ICD

EMMI000061

HMI, 8.4" VGA (640x480) TFT, 64K Color, 24VDC, SD Card Slot, USB Port Type A & B (Mini), LAN

• Allows remote connection via VNC
• Storage capacity, communication ports
• FTP protocol, One SD card slot provided as standard
• Screen configuration software V-SFT with free updates available online
• Modbus RTU and TCP communication and Master/clave configuration possible
• V-SFT software: a single software to configure all the models in the range
• Rated voltage: 24VDC ±10％
• Demand (maximum rating): 17W or less
• Ambient temperature: 0～50℃
• Dimensions W*H*D(mm): 235.0×180.0×48.9
• Case color: Light gray (black front housing for black model)
• Material: PC resin
• Display device: TFT color LCD
• Resolution: 640×480
• Display size: 8.4″
• Colors: 16.7 million
• Backlight: LED
